A Fire Fighting System is a set of equipment, devices, and protocols designed to detect, suppress, and extinguish fires to protect life, property, and the environment. These systems can vary in complexity depending on the type of building or facility, but all are focused on minimizing the impact of fires by either preventing them or mitigating their effects.

Key Components of a Fire Fighting System :

1 Fire Detection Systems :

  • Smoke Detectors : These devices detect the presence of smoke and trigger alarms.
  • Heat Detectors : Detect abnormal temperature increases indicating the presence of fire.
  • Flame Detectors : Recognize infrared or ultraviolet radiation from flames.

2 Fire Alarm System :

  • Alerts people within a building or facility about the presence of fire, enabling them to evacuate.
  • Includes alarms, strobe lights, and voice evacuation systems.

3 Fire Suppression Systems :

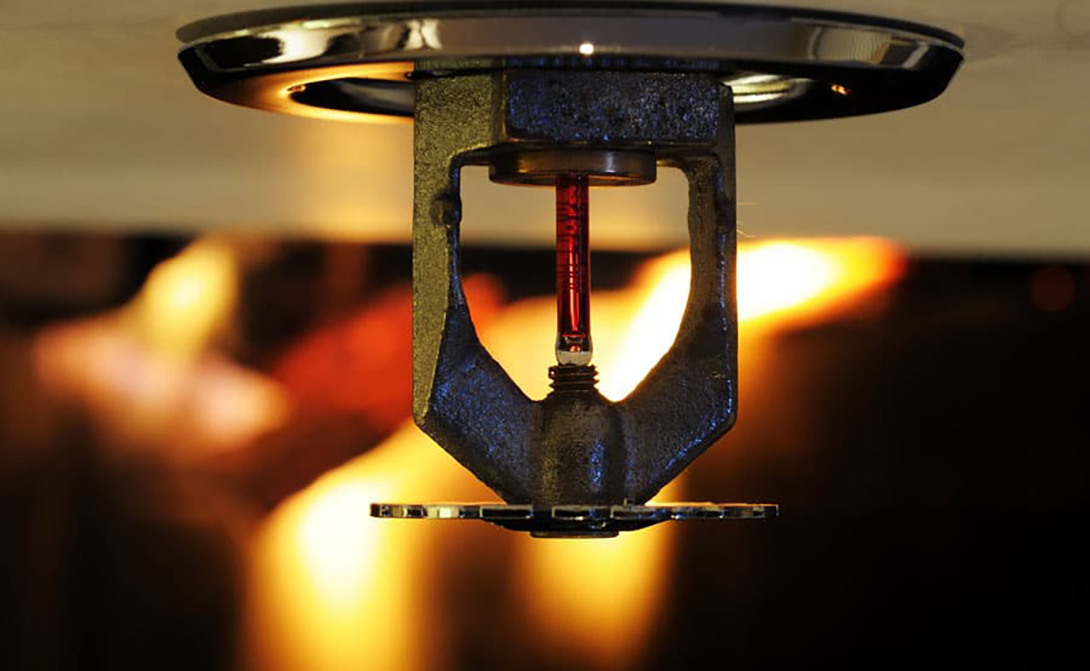

  • Sprinkler Systems : Automatically release water to extinguish fires. These can be wet, dry, or pre-action types, depending on the environment.
  • Fire Extinguishers : Portable devices to manually put out small fires. Types include water, foam, dry powder, CO2, and wet chemical extinguishers.
  • Gaseous Fire Suppression Systems : Use gases such as CO2, FM-200, or Inergen to suppress fires in sensitive areas where water could cause damage (e.g., server rooms).

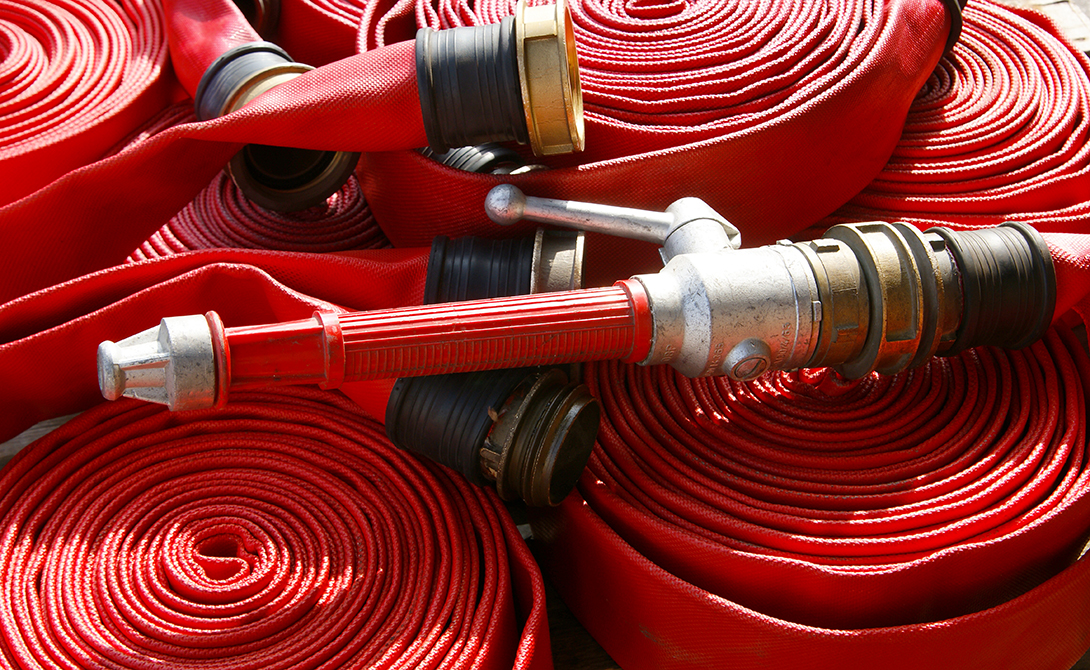

  • Fire Hose Reels and Hydrants : Fixed water delivery systems that allow fire personnel or building occupants to fight fires manually.

4 Fire Control Systems :

  • Fire Pumps : Pumps that ensure adequate water pressure to sprinkler systems, hydrants, and hose reels.
  • Water Tanks or Reservoirs : Stores water to be used in fire suppression.

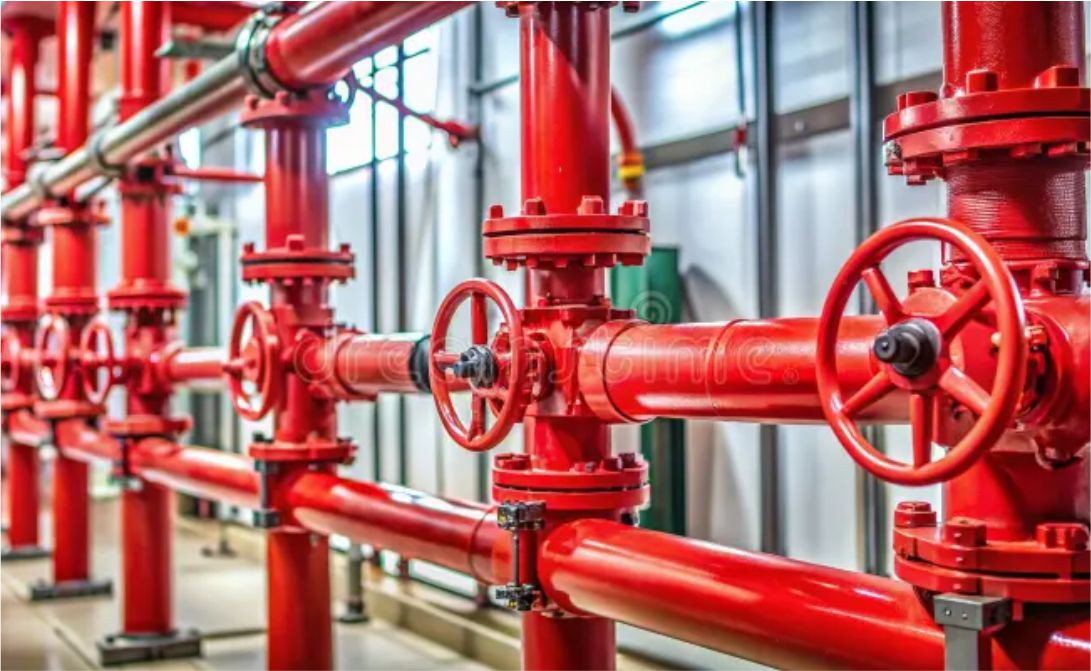

  • Valves and Controls : Manual and automatic valves to control water or foam distribution in the system.

5 Fire Safety Equipment :

  • Emergency Lighting : Ensures that exit routes are visible during a power failure due to a fire.
  • Exit Signs : Clearly indicate evacuation routes to ensure safe exit during an emergency.
  • Fire Blankets : Used to smother small fires, especially for cooking-related incidents.

6 Fire Evacuation Plans :

  • Includes the arrangement of evacuation routes, safe assembly areas, and procedures for emergency evacuations.
  • Regular fire drills and safety training for building occupants.

Types of Fire Fighting Systems :

  • Wet Pipe Systems : The most common type, where water is constantly in the pipes, ready to be activated when a sprinkler head is triggered.
  • Dry Pipe Systems : Pipes are filled with pressurized air, and water is only introduced when the system is activated, typically used in freezing climates.
  • Pre-Action Systems : A combination of wet and dry systems, where water is introduced only after specific triggers (like smoke detection) are activated.
  • Deluge Systems : Sprinklers are open and allow water to flow through all heads when activated. Commonly used in high-risk areas, like chemical storage.

Standards and Regulations :

Fire fighting systems are designed in compliance with national and international standards, such as:
  • NFPA (National Fire Protection Association) standards (NFPA 13, NFPA 72, NFPA 25, etc.).
  • Local building codes and fire regulations.
  • ISO (International Organization for Standardization) standards for fire safety (e.g., ISO 9001, ISO 14001).

Maintenance and Testing :

Routine inspections, testing, and maintenance of fire fighting systems are essential for ensuring their reliability. This includes :
  • Regular inspection of fire extinguishers, sprinklers, and alarms.
  • Testing fire pumps, hydrants, and suppression systems.
  • Replacing expired or damaged equipment.
A well-designed and maintained fire fighting system significantly reduces the risk of loss during a fire emergency, ensuring the safety of building occupants and minimizing property damage.
