To Understand Anodizing Process

To Understand Anodizing

Anodizing is a widely used electrochemical process that enhances the natural oxide layer on metal surfaces, particularly aluminum. This process significantly improves the material's resistance to corrosion, wear, and scratches, while also offering opportunities for aesthetic customization. Whether used in aerospace, automotive, or everyday products like electronics and kitchenware, anodizing plays a crucial role in extending the life of metal objects and improving their visual appeal.

At its core, anodizing is a process where metal, typically aluminum, is subjected to an electrolytic passivation treatment to create a thicker, more durable oxide layer on its surface. The term "anodizing" comes from the word "anode," as the metal part being treated serves as the anode in an electrolytic cell. This layer of oxide is more resistant to corrosion and can be dyed for color effects. While anodizing is most commonly associated with aluminum, it can also be applied to other metals such as titanium, magnesium, and zinc. The thickness of the oxide layer can vary depending on the process, and thicker layers are generally more durable.

The Anodizing Process

1.     Preparation: The metal surface is thoroughly cleaned to remove dirt, grease, or any contaminants that might interfere with the anodizing process. This can involve acid cleaning or abrasive blasting.

2.    Electrolytic Bath: The metal is submerged in a bath containing an acidic electrolyte, such as sulfuric acid. An electric current is passed through the bath, and the metal becomes the anode. The cathode is typically made of lead or another inert material.

3.    Formation of Oxide Layer: As the electric current flows, oxygen is released at the surface of the metal, combining with the metal atoms to form a protective oxide layer. The thickness of the oxide layer depends on the time and current applied.

4.    Sealing: After anodizing, the metal is sealed to close the pores of the oxide layer. This step is essential for enhancing the corrosion resistance of the metal and ensuring that any dyes used in the process are locked in.

Benefits of Anodizing

• Corrosion Resistance: Anodizing creates a tough, protective oxide layer that prevents corrosion, especially in harsh environments such as marine or industrial settings.
• Durability and Wear Resistance: The anodized surface is harder than the base metal itself, making it more resistant to scratches and wear. This makes anodized products ideal for high-wear applications like automotive parts and outdoor structures.

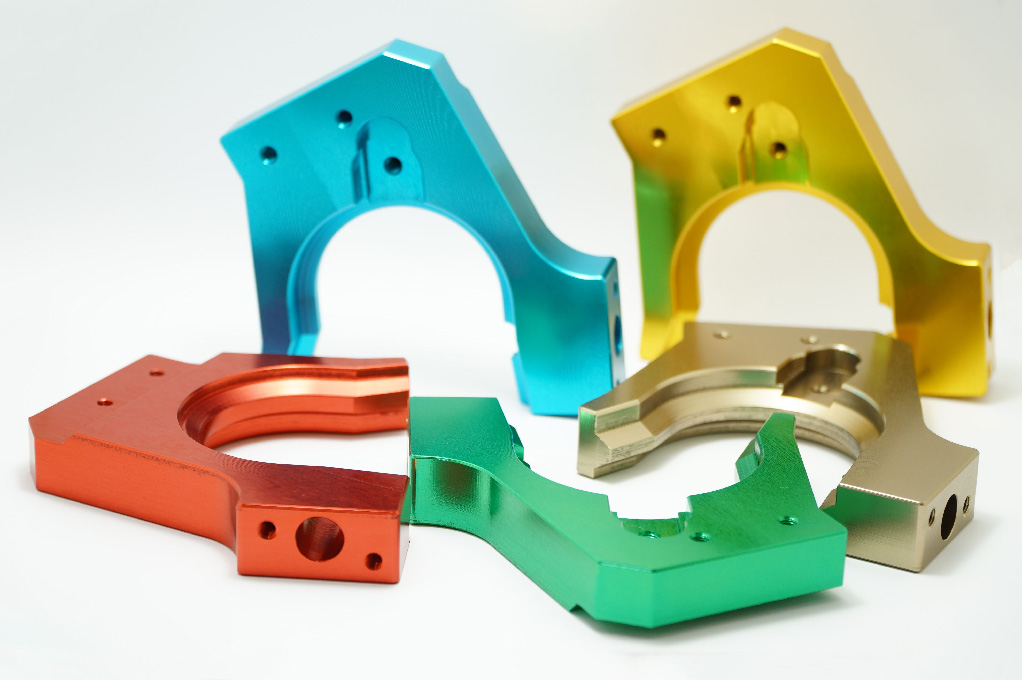

• Aesthetic Flexibility: One of the most notable advantages of anodizing is the ability to add color to the oxide layer. Using a dye, the surface can be colored in a variety of hues without affecting the metal’s properties. The color is more permanent compared to painting, as it becomes part of the metal's surface.
• Environmental Friendliness: Anodizing is an environmentally safe process as it does not involve the use of toxic chemicals or generate harmful byproducts. The anodized aluminum is also fully recyclable.
• Improved Adhesion for Coatings: Anodized surfaces provide better adhesion for paints and other coatings, ensuring that these finishes last longer and perform better over time.

Applications of Anodizing

1.     Aerospace and Automotive: In industries where weight and durability are paramount, anodizing is often used for parts like aircraft components, engine parts, and car trim. The corrosion resistance and wear properties of anodized aluminum make it ideal for these demanding environments.

2.    Architecture and Construction: Anodized aluminum is commonly used in building facades, window frames, and other structural components due to its ability to withstand outdoor elements without degrading over time.

3.    Consumer Goods: From kitchenware to mobile phones, anodized aluminum is used to create sleek, durable products. For instance, anodizing is commonly seen in the design of Apple products, providing both aesthetic appeal and durability.

4.    Electronics: The process is used for improving the performance and longevity of electronic components. The anodized layer protects the internal components from moisture, dust, and other elements.

Types of Anodizing

Anodizing is an electrochemical process that converts the metal surface into a durable, corrosion-resistant, and decorative oxide layer. While it’s most commonly used on aluminum, it can also be applied to titanium, magnesium, and other non-ferrous metals. Different types of anodizing are used depending on the desired properties such as wear resistance, color, thickness, and application. Below are the main types of anodizing:

Type I – Chromic Acid Anodizing : Process: Uses chromic acid electrolyte. I Coating Thickness: Thin (0.5–7.5 microns). I Color: Gray or clear (less suitable for coloring). I Properties: Good corrosion resistance, Minimal dimensional change to the part, Less aggressive; ideal for precision parts. I Applications: Aerospace components, aircraft structures, and applications requiring tight tolerances.

Type II – Sulfuric Acid Anodizing: Process: Uses sulfuric acid electrolyte (most common type). I Coating Thickness: Medium (5–25 microns). I Color: Can be dyed easily in various colors. I Properties: Good wear and corrosion resistance, Ideal for decorative finishes, Relatively low cost. I Applications: Consumer electronics, architectural elements, cookware, and automotive parts.

Type III – Hardcoat Anodizing (Hard Anodizing): Process: Uses sulfuric acid at lower temperatures and higher voltage. I Coating Thickness: Thick (25–150 microns). I Color: Usually dark gray or black (can be dyed but limited options). I Properties: High wear and abrasion resistance, Excellent corrosion protection, Very hard surface (comparable to hard steel). I Applications: Industrial equipment, military hardware, marine parts, and high-performance mechanical components.

Anodizing for Titanium and Other Metals: Titanium Anodizing: Produces a thin oxide layer that refracts light to create interference colors (no dye used). Used in medical devices, jewelry, and aerospace. I Magnesium Anodizing: Typically uses a special electrolyte (like Dow 17 or HAE process). Enhances corrosion resistance and bonding properties.

Challenges and Considerations, While anodizing offers numerous benefits, it is not without its challenges. Some limitations include:

• Thickness Control: Achieving consistent oxide layer thickness can be challenging, and variations in thickness can lead to inconsistent performance.
• Color Uniformity: Achieving uniform color on anodized surfaces can sometimes be difficult, particularly when the metal surface has imperfections or variations in the underlying alloy.
• Surface Integrity: While anodizing enhances the surface, it may not be effective in masking deeper flaws or cracks within the metal, so a high-quality base material is essential.

International Standards for Anodizing

Here’s an overview of the International Standards for the Anodizing Process, which ensure consistency, quality, and safety across industries that use anodized materials (especially aluminum and its alloys):

ISO Standards (International Organization for Standardization) ISO 7599 Title: Anodizing of aluminium and its alloys — General specifications for anodic oxidation coatings on aluminium I Covers general requirements for anodic oxidation coatings, Specifies thickness, sealing, color, and test methods I Applicable to decorative and protective anodizing.

ISO 10074 Title: Anodizing of aluminium and its alloys — Specification for hard anodic oxidation coatings on aluminium and its alloys I Focuses on Type III (hardcoat anodizing). I Specifies minimum coating thickness, wear resistance, and corrosion resistance for industrial uses.

ISO 8993 Title: Anodizing of aluminium and its alloys — Measurement of specular reflectance and specular gloss of anodic oxidation coatings I Describes methods for measuring surface appearance (important for architectural and decorative uses).

ISO 2143 Title: Anodizing of aluminium and its alloys — Estimation of loss of absorptive power of anodic oxidation coatings after sealing — Dye-spot test with prior acid treatment I Tests how well the anodized surface has been sealed (important for corrosion resistance).

ASTM Standards (American Society for Testing and Materials) ASTM B580 Title: Standard Specification for Anodic Oxide Coatings on Aluminum I Covers different classes and types of anodic coatings I Includes requirements for thickness, appearance, corrosion resistance, and adhesion.

ASTM B244 / B244M Title: Standard Test Method for Measurement of Thickness of Anodic Coatings on Aluminum and Other Nonconductive Coatings on Nonmagnetic Basis Metals with Eddy-Current Instruments I Describes methods to measure coating thickness using eddy-current instruments.

ASTM B117 Title: Standard Practice for Operating Salt Spray (Fog) Apparatus I Not specific to anodizing but often used to test the corrosion resistance of anodized parts.

MIL Standards (U.S. Military Specifications) MIL-A-8625 Title: Anodic Coatings for Aluminum and Aluminum Alloys I Defines: Type I: Chromic acid anodizing, Type II: Sulfuric acid anodizing, Type III: Hardcoat anodizing I Specifies thickness, sealing, color, and testing methods I Widely used in aerospace and defense industries.

 EN Standards (European Norms) EN 12373 Series EN 12373-1: Tests for anodic oxidation coatings on aluminum. I Contains detailed procedures for measuring thickness, adhesion, hardness, and abrasion resistance.

 JIS Standards (Japanese Industrial Standards) JIS H 8601 Title: Methods of anodic oxidation coating for aluminum and aluminum alloys I Specifies process methods, test requirements, and visual inspection.

Conclusion

 Anodizing is a powerful process that offers a range of benefits, from increased durability and corrosion resistance to enhanced aesthetic appeal. Whether used in manufacturing, construction, or consumer products, anodized metals stand the test of time in both performance and appearance. As industries continue to demand materials that can withstand the harshest environments while maintaining their beauty, anodizing remains a go-to solution for metal finishing and protection. For those looking to improve the longevity and look of their aluminum-based products, anodizing offers an effective, environmentally friendly solution that enhances both functionality and aesthetics.
